General Purpose Fumehood

General Purpose Fumehood

Epolab Laboratory Fume Extraction Systems provide maximum protection for a range of different hazards at all times, such as dangerous acid and hydrofluoric acid vapours, chemical splashes, and extreme thermal blasts. Each unit is customisable with different inner materials to resist specific chemical and physical exposure, including Phenolic Resin, Fibreglass, and Stainless Steel. Manufactured to EN14175 and Ashrae 110 quality standards, our Laboratory Fume Extraction Systems also come with a 24-month warranty that covers manufacturer defects.

Product Description

DIAGRAM
TECHNICAL SPECS

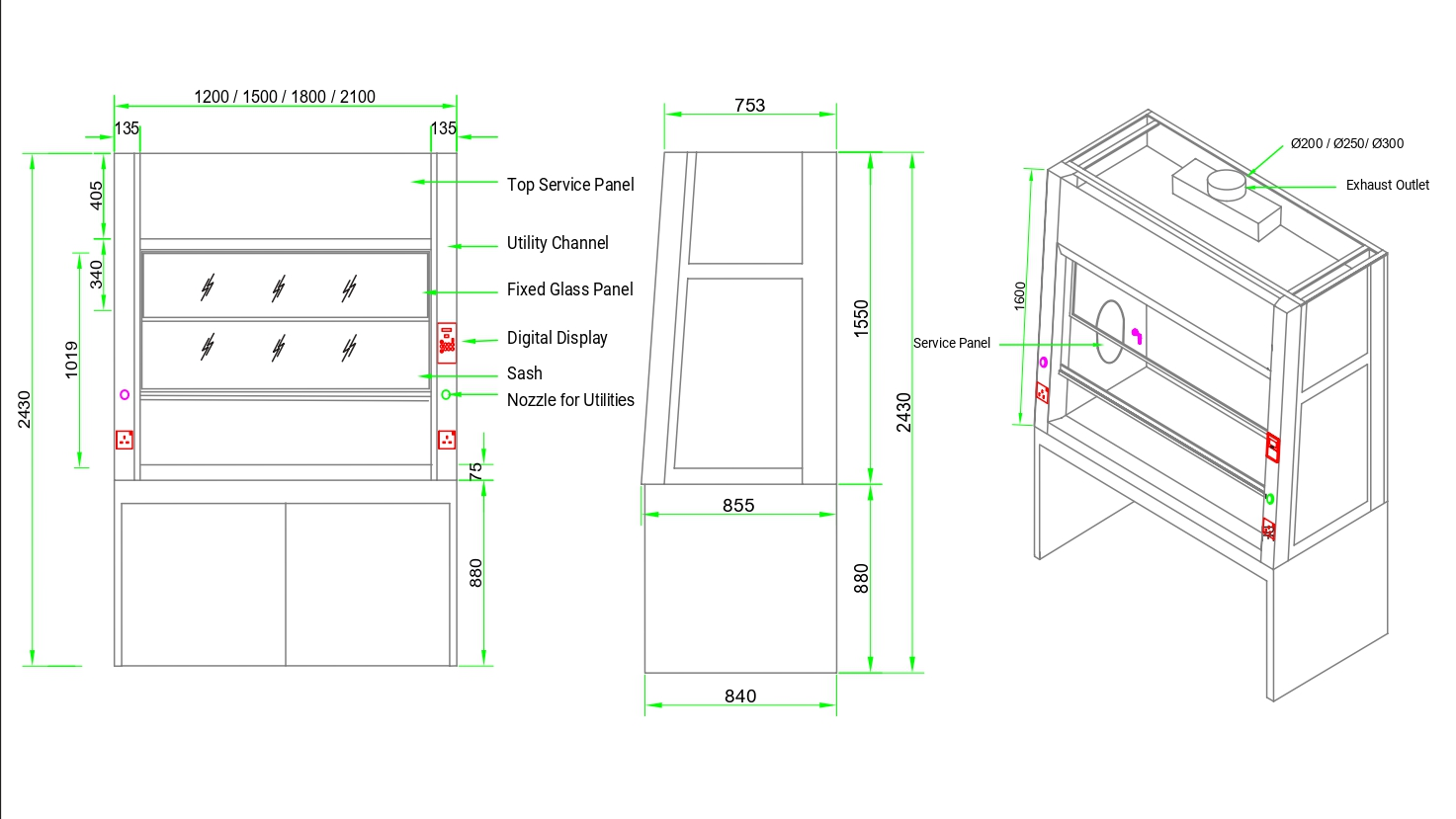

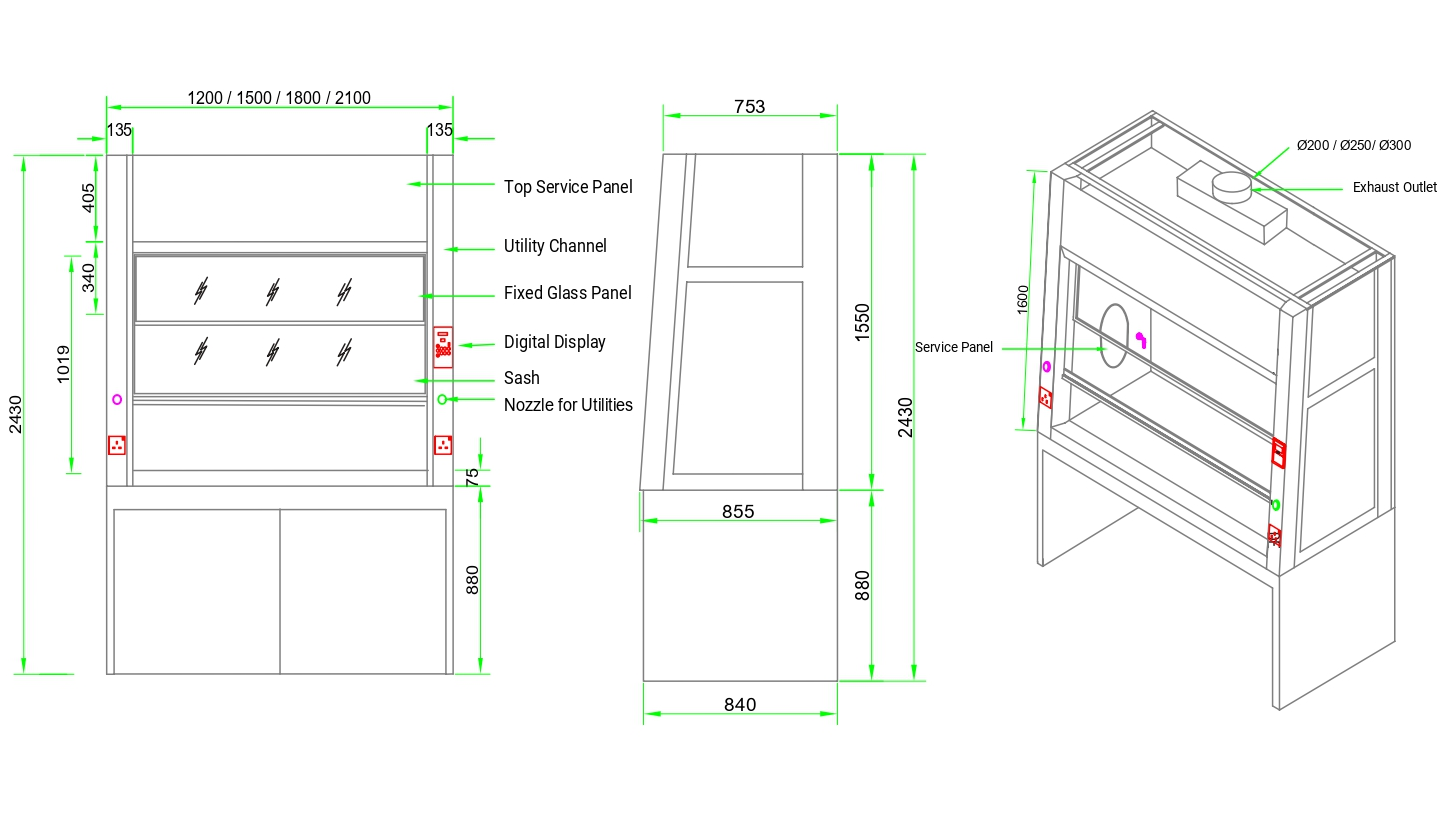

Technical Drawing | Epolab General Purpose Fumehood
Specifications Epolab GP Fumehood
1200 1500 1800 2400
Eternal Dimension (L x D x H, mm) 1200 x 855 x 2430 1500 x 855 x 2430 1800 x 855 x 2430 2400 x 855 x 2430
Internal Dimension (L x D x H, mm) 2400 x 855 x 2430 1230 x 600 x 1300 1530 x 600 x 1300 2130 x 600 x 1300
Maximum Sash Opening, mm 650
Flow Rate , m³/h (Face Velocity of 0.5m/s at 500mm Sash Opening) 840 1110 1380 1920
Exhaust Outlet Diameter, mm (Outer) 200 250/300 250/300 300
Standard Compliance BS EN 14175
Control Mechanism Switch Controller / Digital Controller
Worktop 25mm Epoxy Top with Marine Edge / Stainless Steel 304
External Material Baked Epoxy E.G Steel
Internal Material Phenolic Resin / Fiberglass / Stainless Steel 304
Net Weight 135 195 214 298
Utilities Gas Nozzle / Plug Point / Water Tap with Drip Cup
