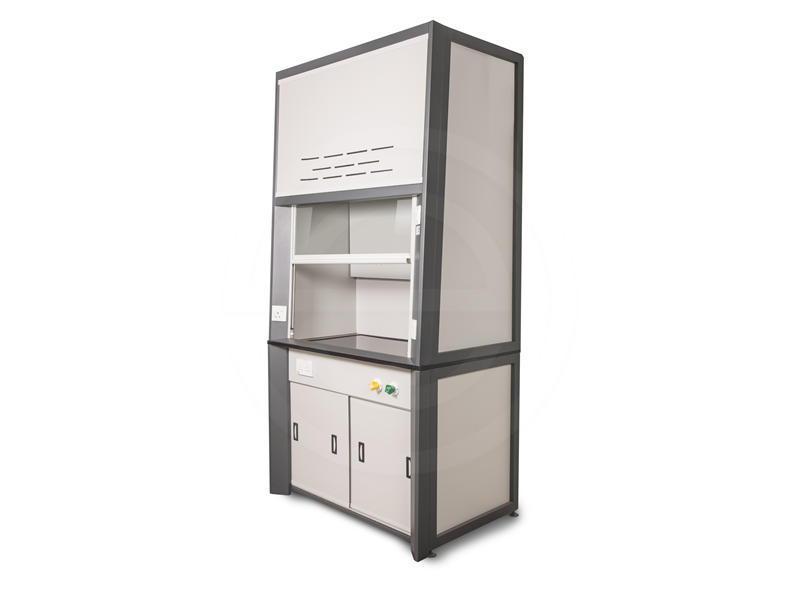

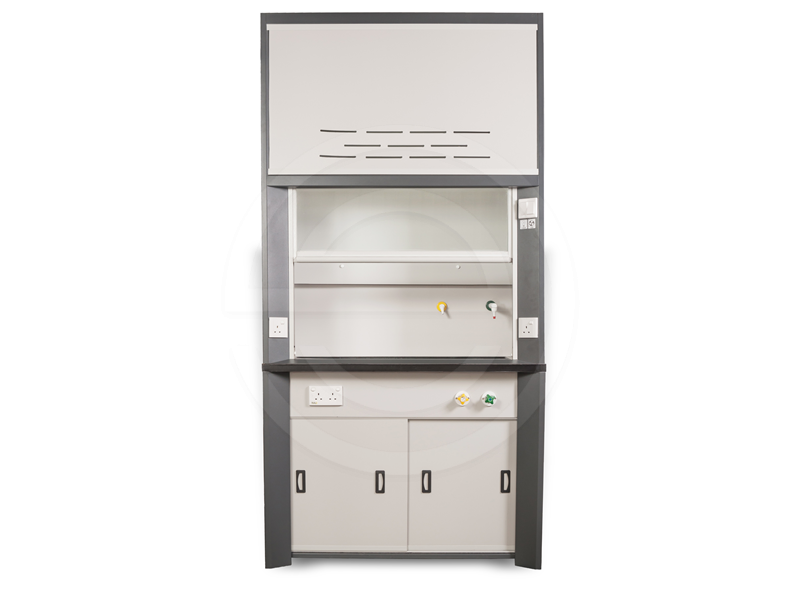

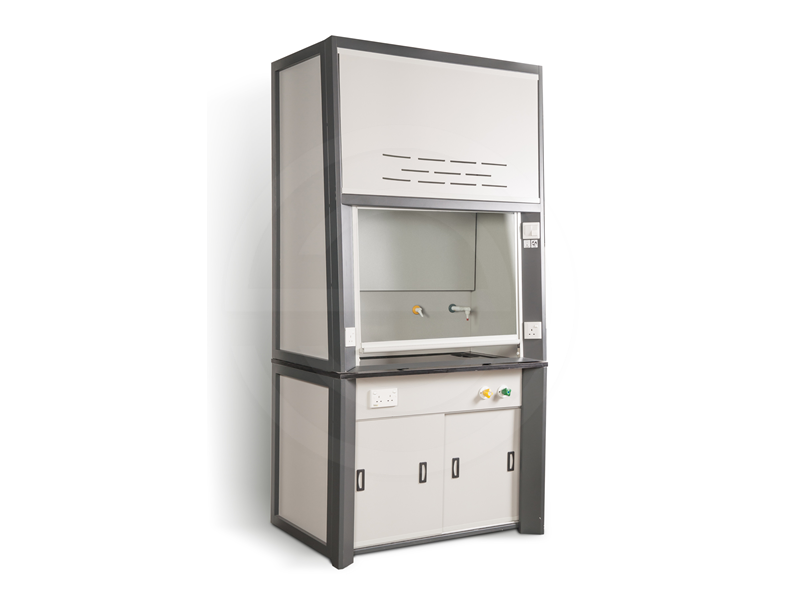

B-Series Fumehood

B-Series Fumehood

Epolab Laboratory Fume Extraction Systems provide maximum protection for a range of different hazards at all times, such as dangerous acid and hydrofluoric acid vapours, chemical splashes, and extreme thermal blasts. Each unit is customisable with different inner materials to resist specific chemical and physical exposure, including Phenolic Resin, Fibreglass, and Stainless Steel. Manufactured to EN14175 and Ashrae 110 quality standards, our Laboratory Fume Extraction Systems also come with a 24-month warranty that covers manufacturer defects.

Product Description

DIAGRAM
TECHNICAL SPECS

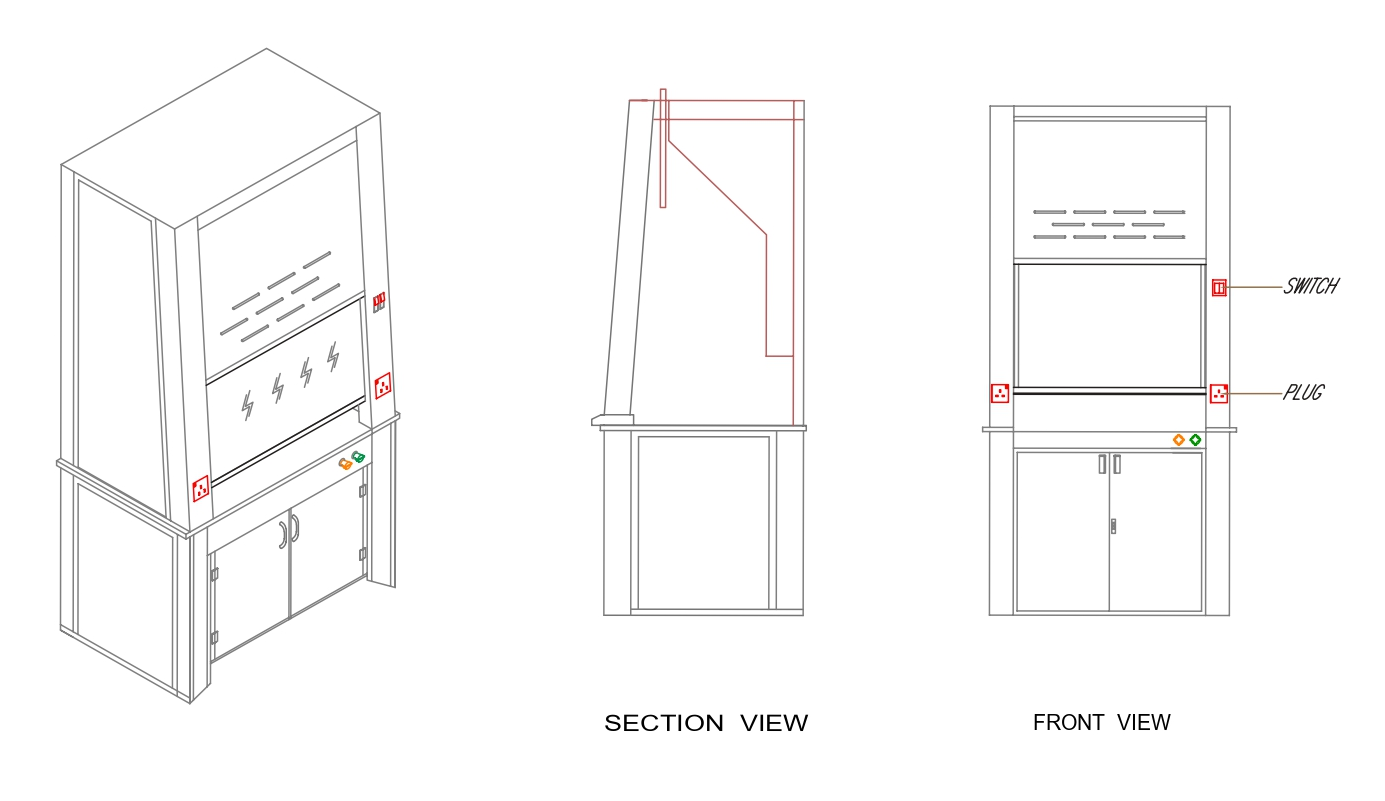

Technical Drawing | Epolab B-Series Fumehood
Specifications Epolab B-Series Fumehood
1200 1500 1800 2400
Eternal Dimension (L x D x H, mm) 1200 x 730 x 2440 1500 x 730 x 2440 1800 x 730 x 2440 2400 x 730 x 2440
Internal Dimension (L x D x H, mm) 930 x 600 x 1300 1230 x 600 x 1300 1530 x 600 x 1300 2130 x 600 x 1300
Maximum Sash Opening, mm 650
Flow Rate , m³/h (Face Velocity of 0.5m/s at 500mm Sash Opening) 870 1130 1410 1950
Exhaust Outlet Diameter, mm (Outer) 200 250/300 250/300 300
Standard Compliance Ashrae 110 - 1995

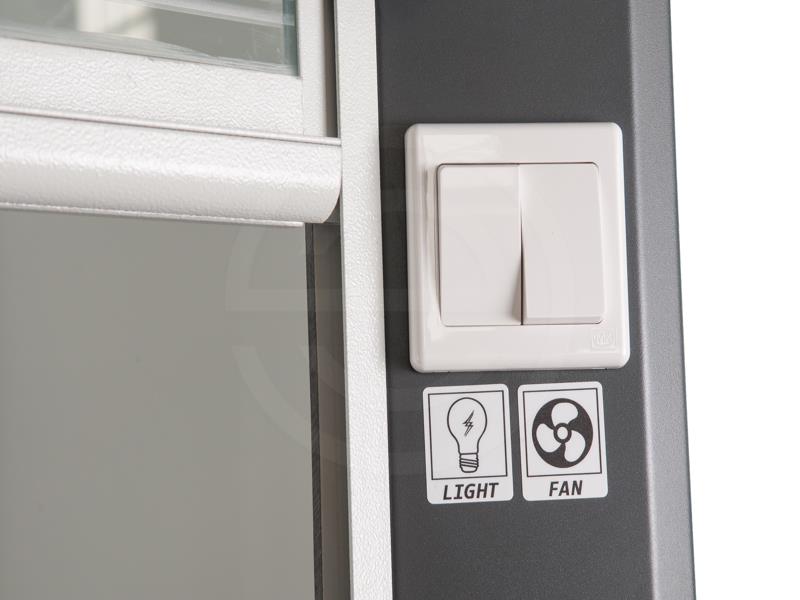

Control Mechanism Switch Controller / Digital Controller
Worktop 25mm Epoxy Top with Marine Edge
External Material Baked Epoxy E.G Steel
Internal Material Phenolic Resin
Net Weight 135 195 214 298
